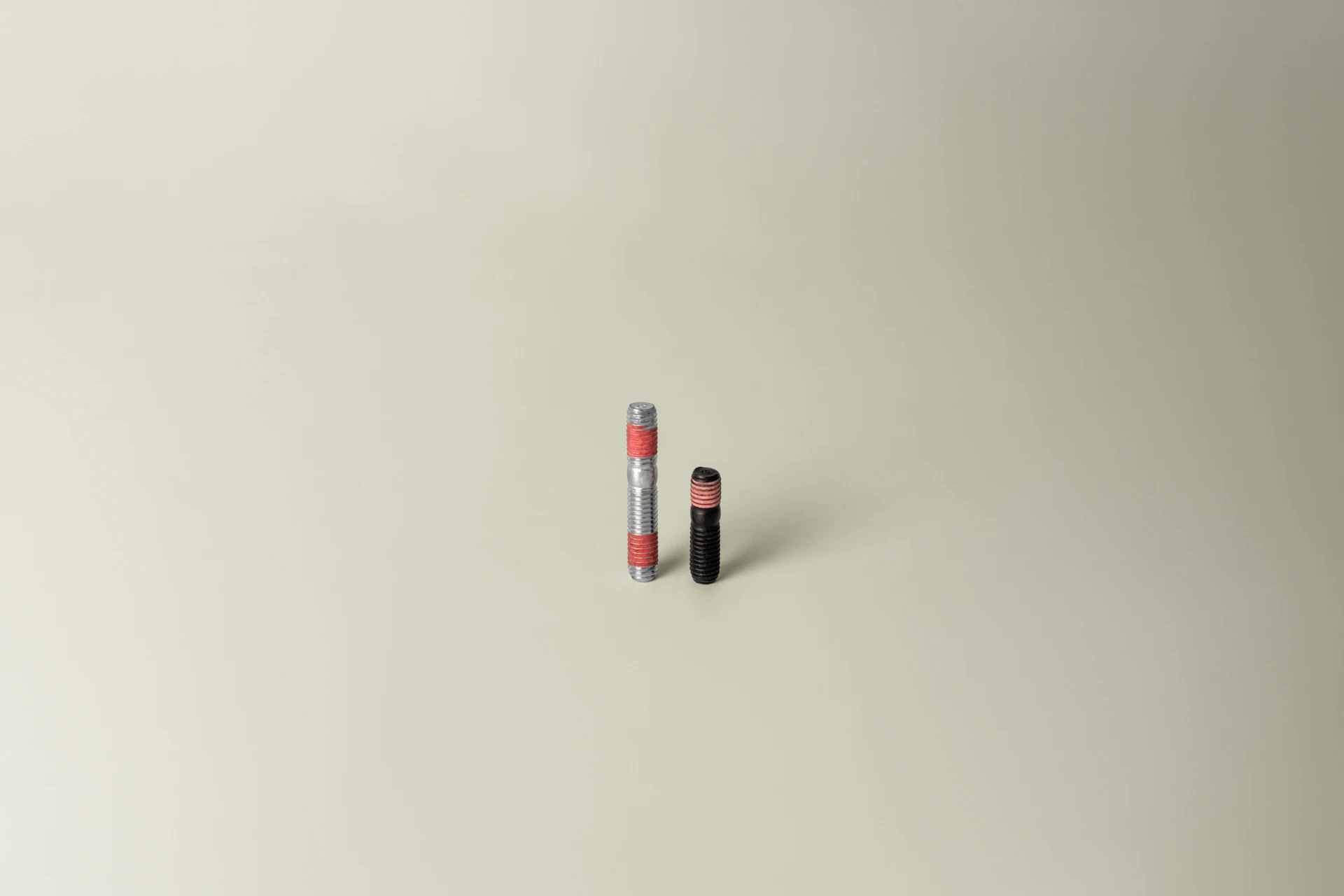

STUD BOLTS
DIN 835 stud, metal end – 2d
DIN 938 stud, metal end – 1d
DIN 939 stud, metal end – 1,25 d
DIN 940 stud, metal end – 2,5 d
DIN 949-1 studs with metric interference thread MFS;
Length of engagement =2d
DIN 949-2 studs with metric interference thread MFS;
Length of engagement =2,5d
special stud sizes according to your drawing or sample
Dimensions:
M 6 – M 100
Property classes/materials:
5.6, 5.8, 8.8, 10.9, steel, stainless steel AISI 304 (A2-70), AISI 316 (A4-70) further materials on request
Surface treatment:
Self colour, bright zinc plated (bzp), thick film passivated, hot-dip galvanized, phosphated, micro layer corrosion protection systems e.g. Dacromet, Geomet.
In stock:
DIN 938 and DIN 939 in 5.8 and 8.8 from M 6 to M 24 in standard sizes deliverable in small boxes
DIN 835
We manufacture stud bolts according to DIN 835 (screw-in end=2d) as well as special stud bolts according to drawing or sample.
DIN 938
We manufacture stud bolts according to DIN 938 (screw-in end = 1d) as well as special stud bolts according to drawing or sample.
DIN 939
We manufacture stud bolts according to DIN 939 (screw-in end = 1.25d) as well as special stud bolts according to drawing or sample.
DIN 940
Wir fertigen gemäß DIN 940 Stiftschraube (Einschraubende=2,5d) sowie Sonderstiftschrauben nach Zeichnung oder Muster.
DIN 949-1
We manufacture stud bolts with metric fixed thread MFS (screw-in length=2d) and special stud bolts according to drawing or sample in accordance with DIN 949-1.
DIN 949-2
We manufacture stud bolts according to DIN 949-2 with metric MFS thread (insertion length=2.5d) as well as special stud bolts according to drawing or sample.
